The lt object contains a list of GO enrichment tables.
names(lt)
## [1] "BP_km1" "BP_km2" "BP_km3" "BP_km4"
head(lt[[1]][, 1:7])
## ID Description GeneRatio BgRatio RichFactor
## GO:0006974 GO:0006974 DNA damage response 84/471 924/18986 0.09090909
## GO:0006281 GO:0006281 DNA repair 65/471 625/18986 0.10400000
## GO:1903047 GO:1903047 mitotic cell cycle process 71/471 784/18986 0.09056122
## GO:0000278 GO:0000278 mitotic cell cycle 76/471 929/18986 0.08180840
## GO:0051052 GO:0051052 regulation of DNA metabolic process 52/471 505/18986 0.10297030
## GO:0051276 GO:0051276 chromosome organization 58/471 644/18986 0.09006211
## FoldEnrichment zScore
## GO:0006974 3.664544 13.24432
## GO:0006281 4.192238 12.94318
## GO:1903047 3.650521 12.08881
## GO:0000278 3.297695 11.45332
## GO:0051052 4.150730 11.44585
## GO:0051276 3.630402 10.83167
We first demonstrate the new plot on the single enrichment table. To use the simplifyEnrichment package,
we extract significant GO terms, and then call simplifyGO().
library(simplifyEnrichment)
df = lt[[1]]
go_id = df$ID[df$p.adjust < 0.01]

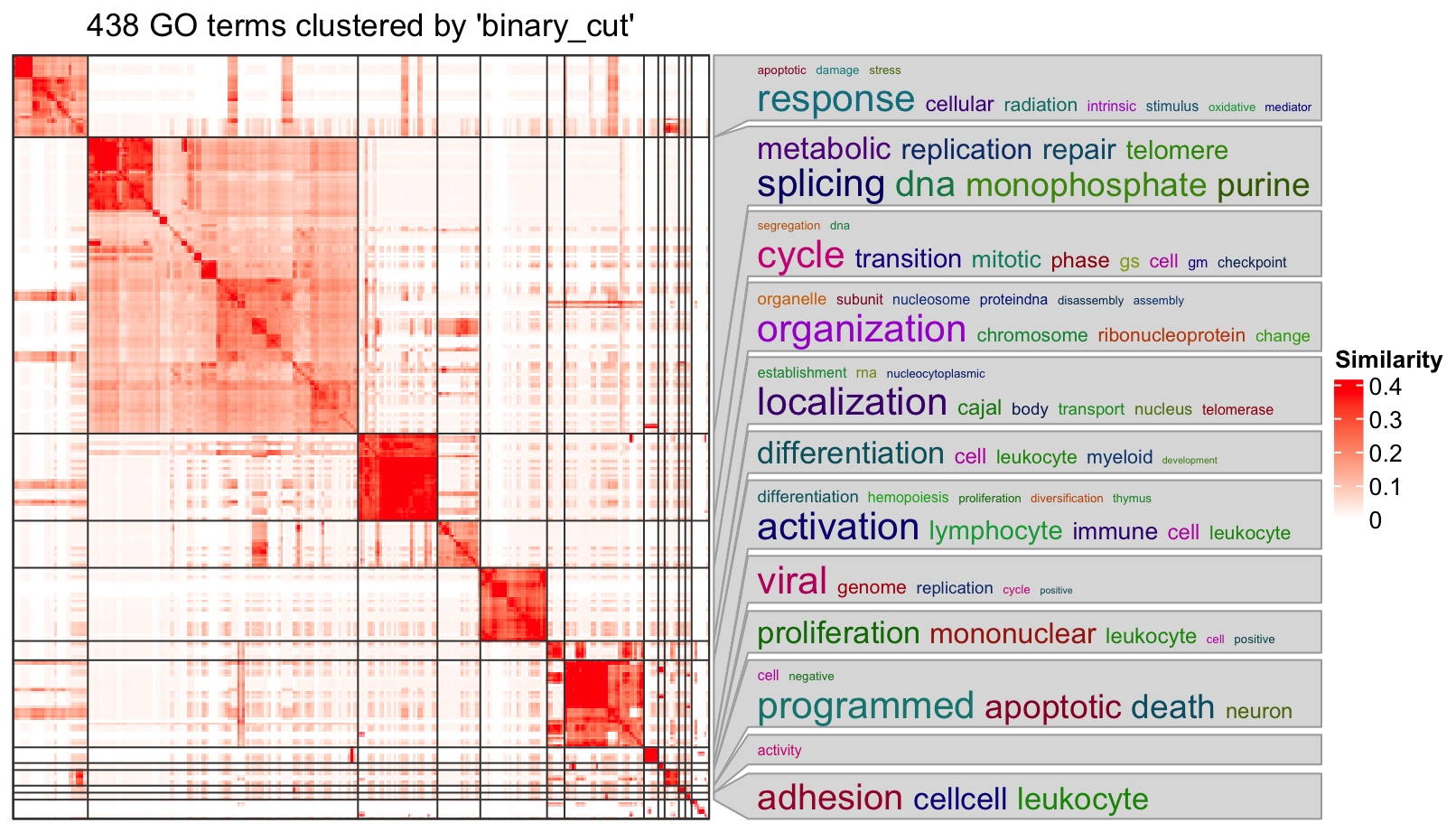

simplifyGO(go_id)
The plot looks good, but it still contains too many graphic contents. For example, the GO similarity heatmap
is useful, but it takes too much space on the final plot. Here I developed a new function summarizeGO() which
simplifies the enrichment results even more. The idea is that since we already have the GO clusters, with a certain
statistic of enrichment, we can simply use its average for the GO cluster.

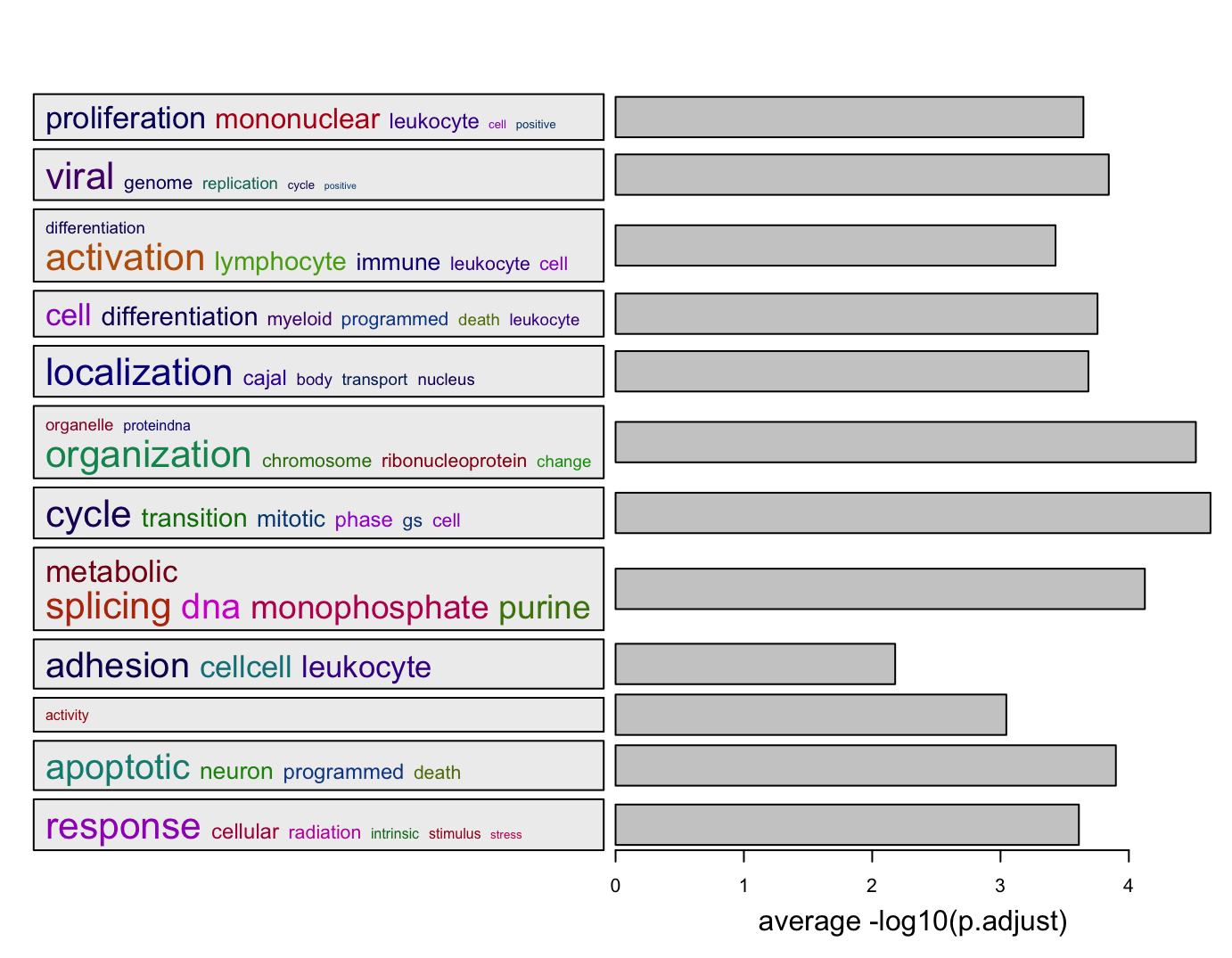

In the following example, we use -log10(p.adjust) as an enrichment measure. The heights of bars correspond to
the mean of -log10(p.adjust) of GO terms in different GO clusters. On the left side, we still use the word clouds which
efficiently show the general functions in each GO cluster.
l = df$p.adjust < 0.01
summarizeGO(df$ID[l], -log10(df$p.adjust)[l], axis_label = "average -log10(p.adjust)")
GO IDs can be attached to the numeric value vector, but this time, the value argument
should be explicitely specified when calling summarizeGO().
v = -log10(df$p.adjust)
names(v) = df$ID
summarizeGO(value = v[l], axis_label = "average -log10(p.adjust)")
Beside -log10(p.adjust), we also suggest to use log2 fold enrichment as the enrichment measure. It is calculated as
$$ \log_2 \left( \frac{k/m_1}{m_2/n} \right) $$
where \(k\) is the number of DE genes (if the genes of interest are DE genes) in
a gene set, \(m_1\) is the size of DE genes, \(m_2\) is the size of the gene set,
\(n\) is the total number of genes in the universal set. Of course, the definition
of \(m_1\) and \(m_2\) can be switched.
k = as.numeric(gsub("/\\d+$", "", df$GeneRatio))
m1 = as.numeric(gsub("^\\d+/", "", df$GeneRatio))
m2 = as.numeric(gsub("/\\d+$", "", df$BgRatio))
n = as.numeric(gsub("^\\d+/", "", df$BgRatio))
log2_fold_enrichment = log2(k*n/m1/m2)

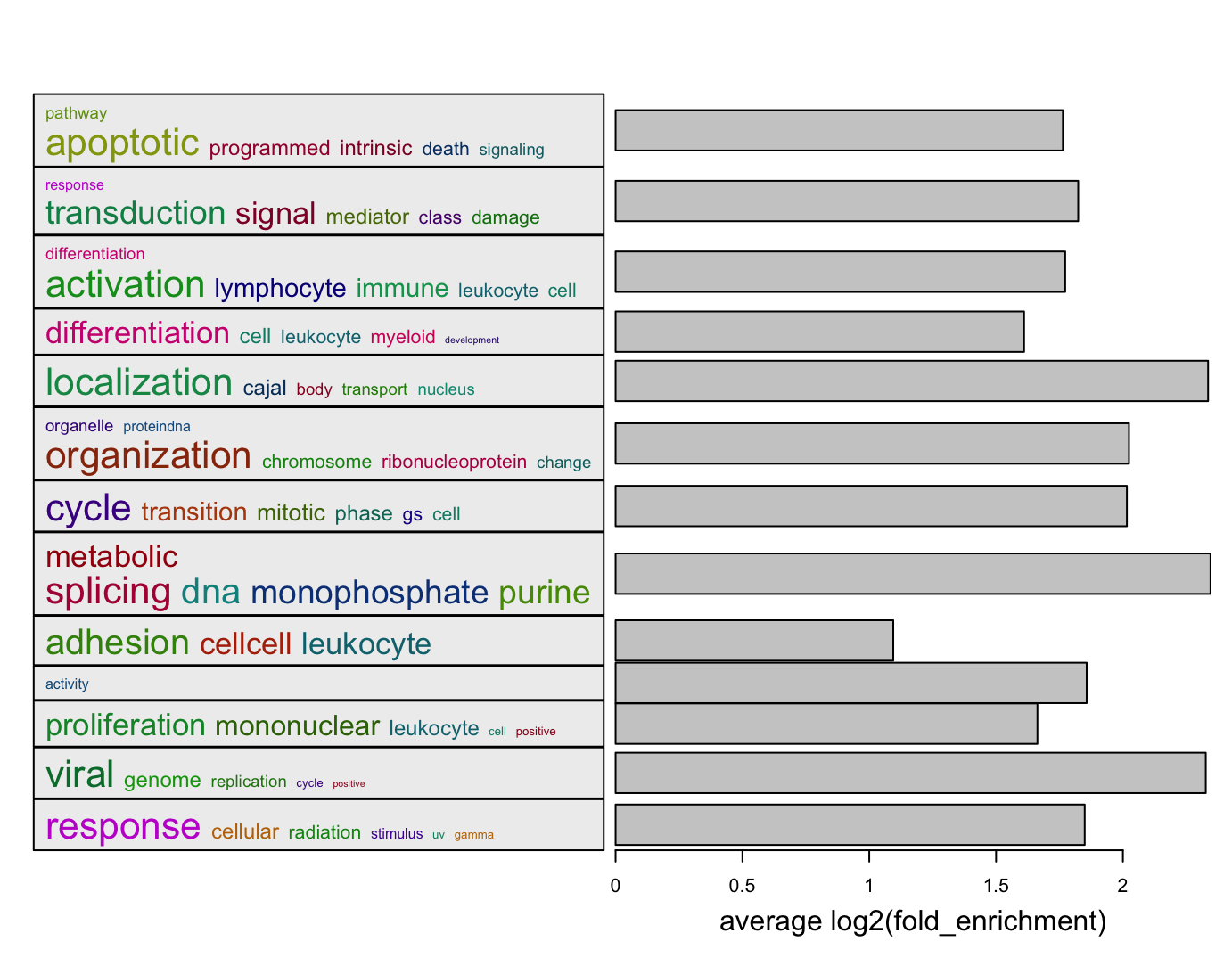

summarizeGO(df$ID[l], log2_fold_enrichment[l], axis_label = "average log2(fold_enrichment)")
Of course, you can construct a named log2_fold_enrichment vector which only contains significant GO terms.
names(log2_fold_enrichment) = df$ID
summarizeGO(value = log2_fold_enrichment[l], axis_label = "average log2(fold_enrichment)")

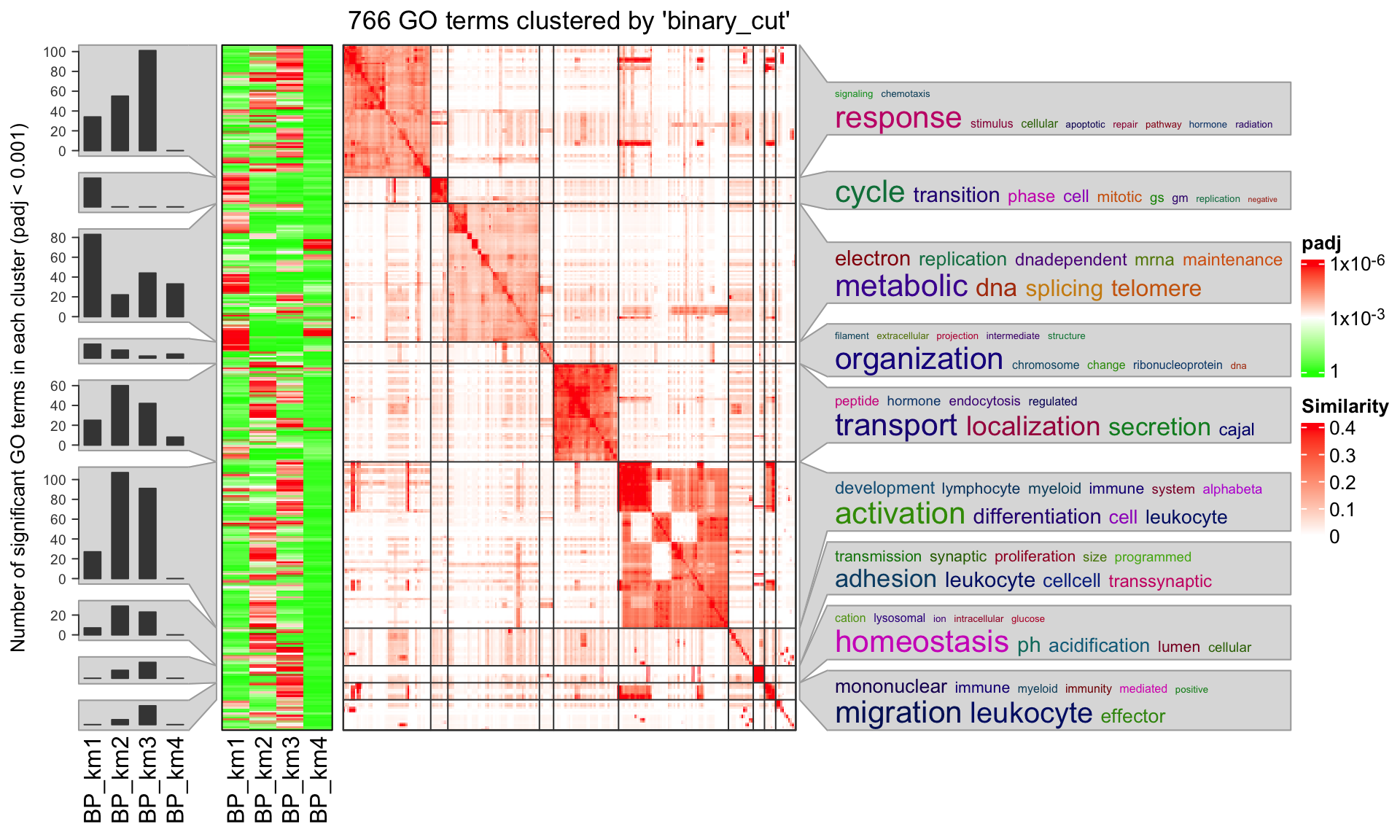

For multiple GO enrichment results, simplifyGOFromMultipleLists() can be used to visualize and compare GO clusters.
simplifyGOFromMultipleLists(lt, padj_cutoff = 0.001)

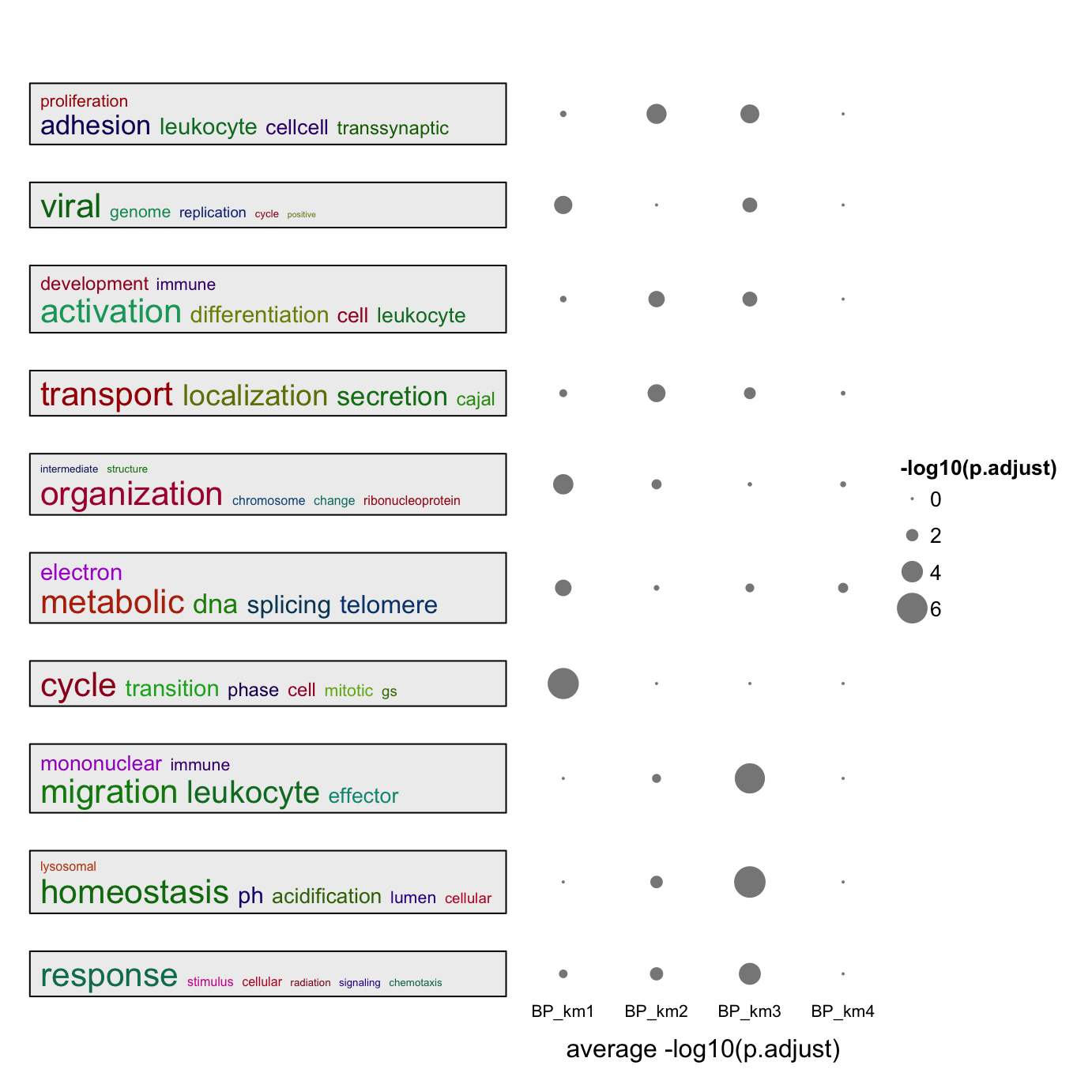

summarizeGO() can also be used to simplify such plot. Now the value of value is a list of numeric named vectors which contains
significant GO terms in each enrichment table:
value = lapply(lt, function(df) {
v = -log10(df$p.adjust)
names(v) = df$ID
v[df$p.adjust < 0.001]
})
summarizeGO(value = value, axis_label = "average -log10(p.adjust)", legend_title = "-log10(p.adjust)")
