sfcurve

\(n \times n\) 空间填充曲线

基本信息

软件包	链接
编程语言	R, C++
CRAN	https://cran.r-project.org/package=sfcurve
GitHub	https://github.com/jokergoo/sfcurve
文档	https://jokergoo.github.io/sfcurve/
论文	Zuguang Gu, Construction, Transformation and Structures of 2x2 Space-Filling Curves. arXiv 2024.

例子

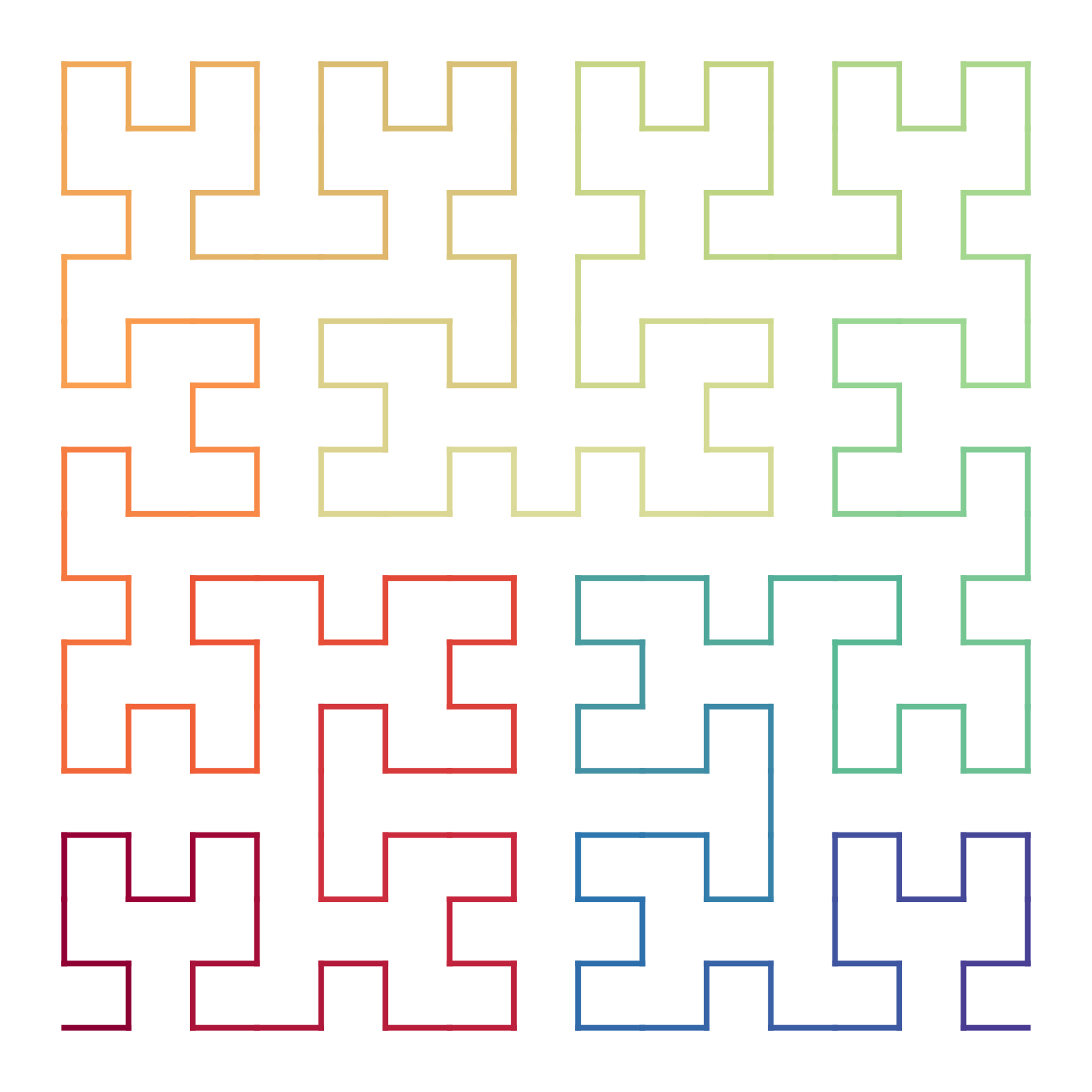

2x2曲线

library(sfcurve)
p = sfc_2x2("I", "2222", rot = 270)
p

## An sfc_2x2 object.
##   Increase mode: 2 x 2
##   Level: 4
##   Expansion rule: 2x2
##
## A sequence of 256 base patterns.
##   I(270)L(270)L(0)R(90)   I(0)R(0)R(270)L(180)
##   L(270)R(0)R(270)I(180)  R(180)L(90)L(180)I(270)
##   .... other 28 lines ....
##   I(270)L(270)L(0)R(90)   I(0)R(0)R(270)L(180)
##   L(270)R(0)R(270)I(180)  R(180)L(90)L(180)I(270)
##
## Seed: A sequence of 1 base pattern.
##   I(270)

plot(p)

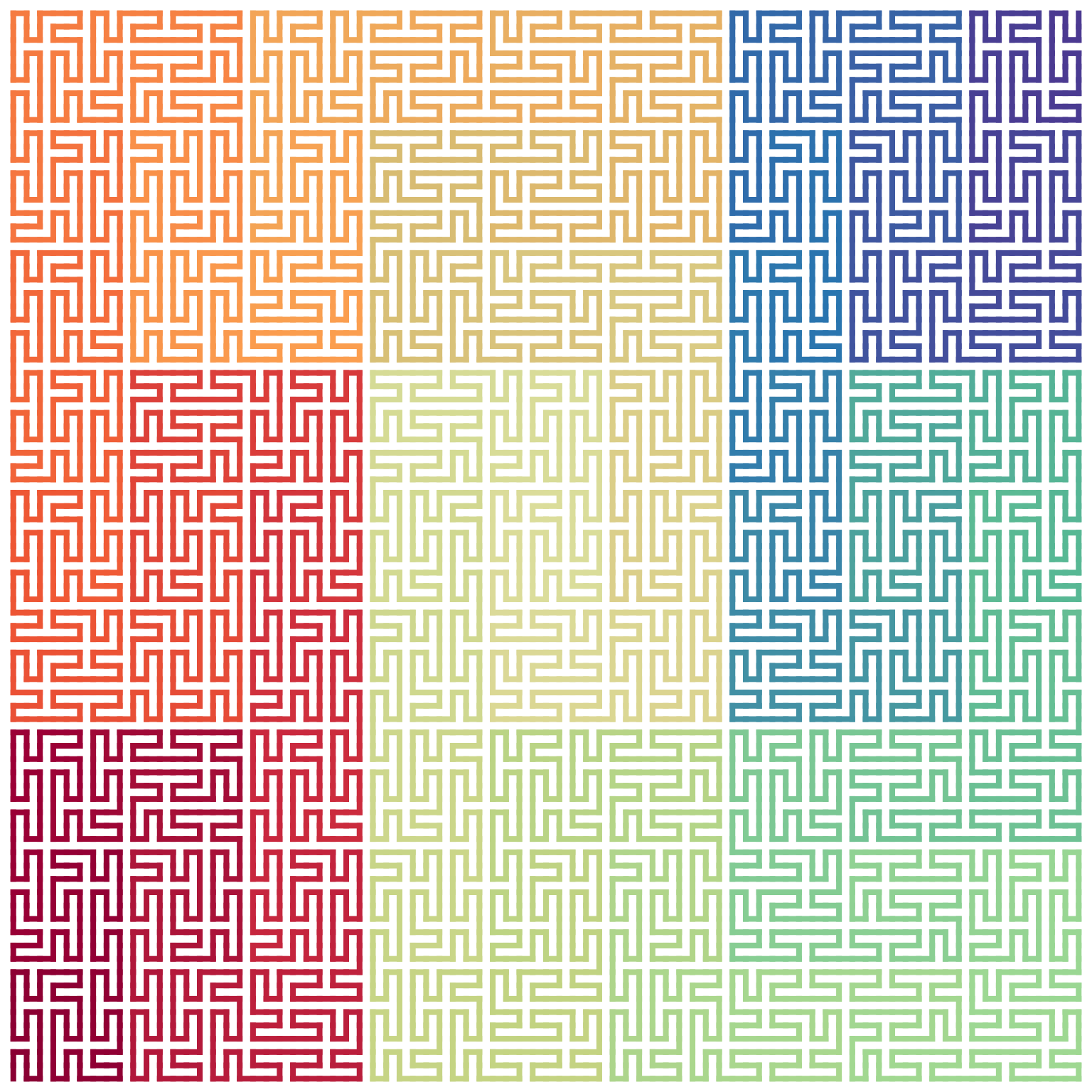

3x3 Peano曲线

p = sfc_3x3_peano("I", "1111")
plot(p)

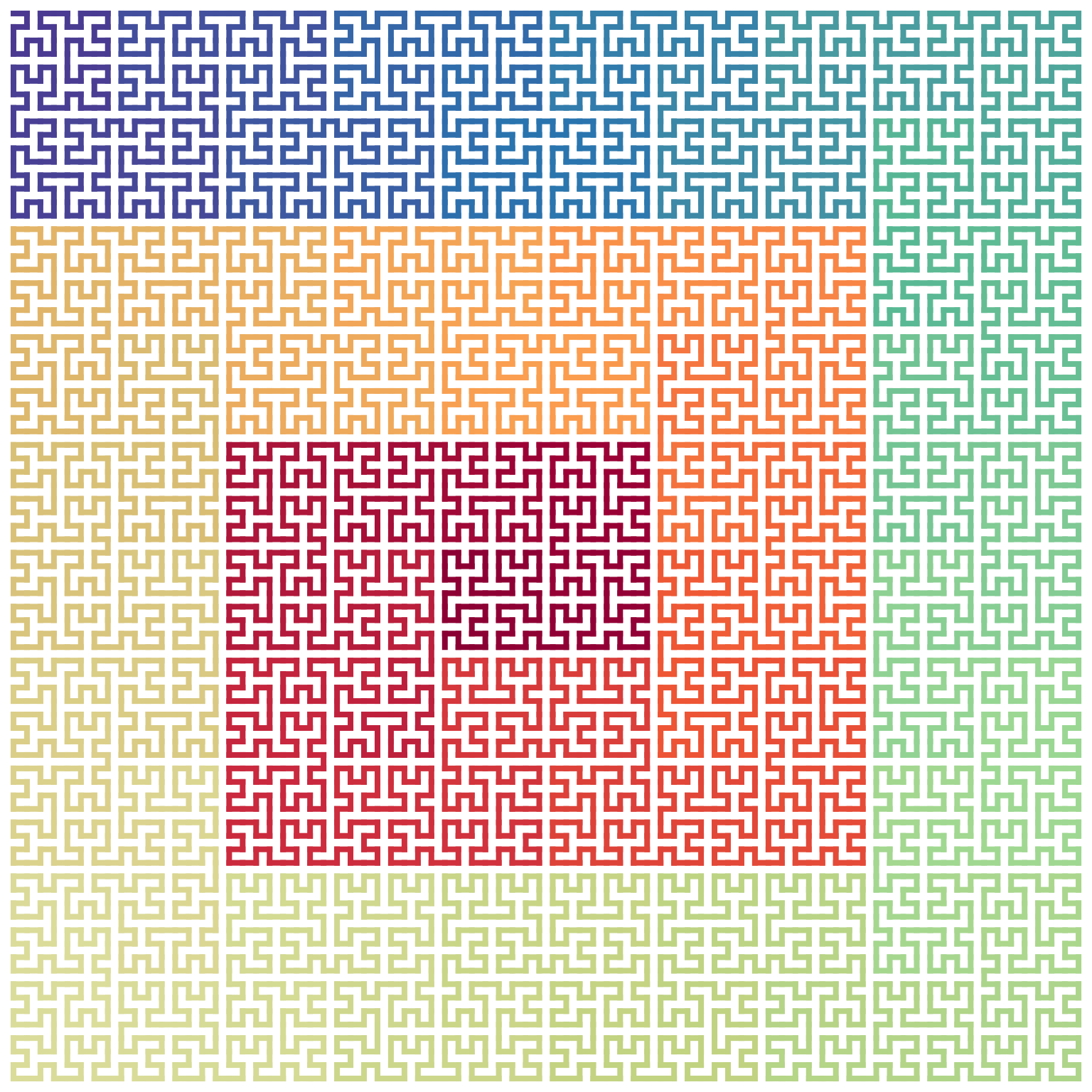

以一条初级曲线作为起始的曲线

p = sfc_seed("LLLILILIILIILIIILIIILIIII")
p2 = sfc_2x2(p, "1111")
plot(p2)
