Topic 8-01: GSEA framework

Load the p53 dataset.

library(GSEAtopics)
data(p53_dataset)
expr = p53_dataset$expr
condition = p53_dataset$condition
gs = p53_dataset$gs

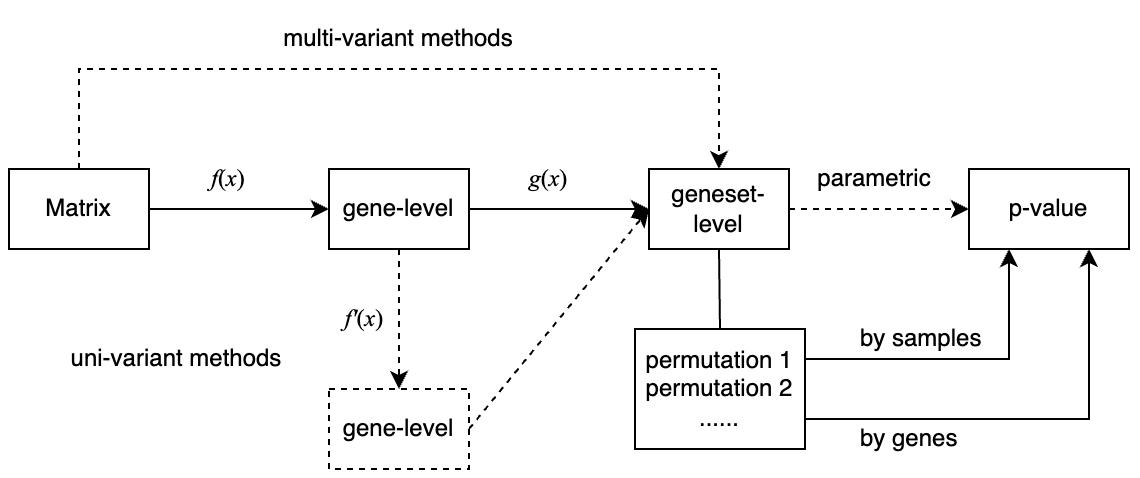

The process of GSEA framework:

In this document, we only implement the framework for the univariant procedure.

Gene-level

For the gene-level function, the inputs are:

the expression matrix
condition vector

And the output is

a numeric vector

Let’s implement the following gene-level metrics:

log2 fold change
signal-to-noise ratio
t-value
SAM t-value
p-value

library(matrixStats)
library(genefilter)

gene_level = function(mat, condition, method = "tvalue") {

    le = levels(condition)
    l_group1 = condition == le[1]
    l_group2 = !l_group1

    mat1 = mat[, l_group1, drop = FALSE]  # sub-matrix for condition 1
    mat2 = mat[, l_group2, drop = FALSE]  # sub-matrix for condition 2

    n1 = ncol(mat1)
    n2 = ncol(mat2)
    miu1 = rowMeans(mat1)
    miu2 = rowMeans(mat2)
    v1 = rowVars(mat1)
    v2 = rowVars(mat2)

    if(method == "log2fc") {
        stat = log2(miu1/miu2)
    } else if(method == "s2n") {
        stat = (miu1 - miu2)/(sqrt(v1) + sqrt(v2))
    } else if(method == "tvalue") {
        sp = sqrt( ((n1-1)*v1 + (n2-1)*v2)/(n1 + n2 - 2) )*sqrt(1/n1 + 1/n2)  # similar variance
        stat = (miu1 - miu2)/sp
    } else if(method == "sam") {
        sp = sqrt( ((n1-1)*v1 + (n2-1)*v2)/(n1 + n2 - 2) )*sqrt(1/n1 + 1/n2)
        stat = (miu1 - miu2)/(sp + quantile(sp, 0.1))
    } else if(method == "pvalue") {
        stat = rowttests(mat, condition)$p.value
        names(stat) = rownames(mat)
    } else {
        stop("method is not supported.")
    }

    return(stat)
}

Let’s validate these metrics. Make sure the returned gene-level vector has genes as names.

gene_level(expr, condition, method = "log2fc") |> head()

##       TACC2   C14orf132        AGER    32385_at       RBM17        DYT1
##  0.07593411  0.55514339 -0.08159075  0.04059226 -0.31549894 -0.02842489

gene_level(expr, condition, method = "s2n") |> head()

##       TACC2   C14orf132        AGER    32385_at       RBM17        DYT1
##  0.03877608  0.17250784 -0.11073309  0.02971246 -0.16602936 -0.03105742

gene_level(expr, condition, method = "tvalue") |> head()

##      TACC2  C14orf132       AGER   32385_at      RBM17       DYT1
##  0.2722180  1.0253505 -0.7237478  0.2055698 -1.0847294 -0.2124849

gene_level(expr, condition, method = "sam") |> head()

##      TACC2  C14orf132       AGER   32385_at      RBM17       DYT1
##  0.2470969  0.9772511 -0.5267932  0.1148408 -0.4377112 -0.1962275

gene_level(expr, condition, method = "pvalue") |> head()

##     TACC2 C14orf132      AGER  32385_at     RBM17      DYT1
## 0.7866220 0.3103376 0.4727332 0.8379963 0.2834598 0.8326286

Question: consider to implement a gene-leve metric (signed log_p): -log10(p)*sign(t), or the ranks rank(t) - length(t)/2.

Transformation on gene-level

The transformation function accepts a gene-level vector and returns a gene-level vector where values have been updated.

We implement the following transformations:

identity
abs
square
binary

trans_gene_level = function(gene_stat, method = "identity") {
    if(method == "identity") {
        gene_stat2 = gene_stat
    } else if(method == "abs") {
        gene_stat2 = abs(gene_stat)
    } else if(method == "square") {
        gene_stat2 = gene_stat^2
    } else if(method == "binary") {
        gene_stat2 = ???
    } else {
        stop("method is not supported.")
    }

    return(gene_stat2)
}

The implementation of the binary transformation might need more work, as it can be defined as larger or less than a cutoff, or the filtering is applied on the absolute value of the input gene-level vector, such as |t| > 2. We would add an additional argument to let users to define their binary transformation.

trans_gene_level = function(gene_stat, method = "abs", binarize) {
    if(method == "identity") {
        gene_stat2 = gene_stat
    } else if(method == "abs") {
        gene_stat2 = abs(gene_stat)
    } else if(method == "square") {
        gene_stat2 = gene_stat^2
    } else if(method == "binary") {
        gene_stat2 = binarize(gene_stat) + 0  # to convert to numeric
    } else {
        stop("method is not supported.")
    }

    return(gene_stat2)
}

Examples of the self-defined function binarize are:

function(x) x < 0.05  # if the gene scores are p-values
function(x) abs(x) > 2  # if the gene scores are t-values
function(x) abs(x) > 1  # if the gene scores are log2 fold changes

Actually trans_gene_level() can be integrated into gene_level() as f'(f(...)) also returns gene-level scores.

Set-level

The geneset-level function accepts two inputs:

A gene-level vector
A gene set represented as a vector of gene IDs, or a logical vector representing whether the genes are in the gene set.

Output is simply

A geneset-level statistic.

Let’s implement the following methods:

mean
median
maxmean
wilcox
ks (two-sided statistic)

set_level = function(gene_stat, l_set, method) {

    if(method == "mean") {
        stat = mean(gene_stat[l_set])
    } else if(method == "median") {
        stat = median(gene_stat[l_set])
    } else if(method == "maxmean") {
        s = gene_stat[l_set]
        if(all(s >= 0) || all(s <= 0)) {
            stat = mean(s)
        } else {
            s1 = mean(s[s > 0])
            s2 = -mean(s[s < 0])
            stat = ifelse(s1 > s2, s1, -s2)
        }
    } else if(method == "wilcox") {
        # stat = wilcox.test(gene_stat[l_set], gene_stat[!l_set])$statistic
        # we use a faster version
        stat = set_level_wilcox(gene_stat, l_set)
    } else if(method == "ks") {
        od = order(gene_stat, decreasing = TRUE)
        gene_stat = gene_stat[od]
        l_set = l_set[od]

        s_set = abs(gene_stat)
        s_set[!l_set] = 0
        f1 = cumsum(s_set)/sum(s_set)

        l_other = !l_set
        f2 = cumsum(l_other)/sum(l_other)

        m1 = max(f1 - f2)
        m2 = min(f1 - f2)

        stat = max(abs(m1), abs(m2)) * ifelse(abs(m1) > abs(m2), sign(m1), sign(m2))
    } else {
        stop("method is not supported.")
    }

    return(unname(stat))
}

Let’s validate set_level():

gene_stat = gene_level(expr, condition, method = "s2n")
l_set = names(gene_stat) %in% gs[["p53hypoxiaPathway"]]
set_level(gene_stat, l_set, "mean")

## [1] -0.1449222

set_level(gene_stat, l_set, "median")

## [1] -0.0349521

set_level(gene_stat, l_set, "maxmean")

## [1] -0.3329503

set_level(gene_stat, l_set, "wilcox")

## [1] 868

set_level(gene_stat, l_set, "ks")

## [1] -0.6816006

Calculate p-value from the null distribution

A null distribution of the set-level statistic is generated by permutation. The p-value can be calculated as one-sided or two-sided.

p_null = function(x, null, side = "right") {
    n = length(null)
    if(side == "right") {
        p = sum(null >= x)/n  # P(X >= x)
    } else if(side == "left") {
        p = sum(null <= x)/n  # P(X <= x)
    } else if(side == "both") {
        p = sum(abs(null) >= abs(x))/n  # P(|X| >= |x|)
    }

    return(p)
}

Put together

Now we have all the components ready.

gene_level: five methods,
trans_gene_level: four methods,
set_level: five methods,
p_null: three methods.

ORA and GSEA can be constructed by different combinations of these components:

For ORA:

gene_level: p-value
trans_gene_level: binary
set_level: sum, basically has the same effect as mean
p_null: sample permutation + right-sided

For GSEA (v2):

gene_level: signal-to-noise ratio
trans_gene_level: none
set_level: ks
p_null: sample or gene permutation, one or two-sided

Now we can wrap them into a “framework” function. First let the function only return set-level statistics.

gsea_framework = function(mat, condition, gene_sets,
    gene_level_method = "tvalue",
    transform = "identity", binarize = NULL,
    set_level_method = "mean",
    perm_type = "sample", n_perm = 1000, p_null_side = "both") {

    gene_stat = gene_level(mat, condition, method = gene_level_method)
    gene_stat = trans_gene_level(gene_stat, transform, binarize = binarize)

    set_stat = sapply(gene_sets, function(set) {
        l_set = rownames(mat) %in% set

        set_level(gene_stat, l_set, set_level_method)
    })
    set_stat
}

Let’s test it:

gsea_framework(expr, condition, gs) |> head()

##          41bbPathway          ace2Pathway acetaminophenPathway
##          -0.00266329          -1.17766452          -0.48669800
##           achPathway        actinYPathway         agpcrPathway
##          -0.06278454          -0.32166317          -0.15656410

Next we add the permutations and let the function return a complete data frame.

library(fastmatch)
gsea_framework = function(mat, condition, gene_sets,
    gene_level_method = "tvalue",
    transform = "identity", binarize = NULL,
    set_level_method = "mean",
    perm_type = "sample", nperm = 1000, p_null_side = "both") {

    n_gs = length(gene_sets)

    gene_stat = gene_level(mat, condition, method = gene_level_method)
    gene_stat = trans_gene_level(gene_stat, transform, binarize = binarize)

    l_set_list = lapply(gene_sets, function(set) {
        rownames(mat) %fin% set
    })

    set_stat = sapply(l_set_list, function(l_set) {
        set_level(gene_stat, l_set, set_level_method)
    })

    ## null distribution
    set_stat_random = list()

    for(i in seq_len(nperm)) {

        if(perm_type == "sample") {
            condition_random = sample(condition)
            gene_stat_random = gene_level(mat, condition_random, method = gene_level_method)
            gene_stat_random = trans_gene_level(gene_stat_random, transform, binarize = binarize)

            set_stat_random[[i]] = sapply(l_set_list, function(l_set) {
                set_level(gene_stat_random, l_set, set_level_method)
            })
        } else if(perm_type == "gene") {
            # because l_set_list is pre-calculated, so we permute the values while keeping the order of genes
            gene_stat_random = structure(sample(gene_stat), names = names(gene_stat))

            set_stat_random[[i]] = sapply(l_set_list, function(l_set) {
                set_level(gene_stat_random, l_set, set_level_method)
            })
        } else {
            stop("wrong permutation type.")
        }

        if(i %% 100 == 0) {
            message(i, " permutations done.")
        }
    }

    set_stat_random = do.call(cbind, set_stat_random)

    n_set = length(gene_sets)
    p = numeric(n_set)
    for(i in seq_len(n_set)) {
        p[i] = p_null(set_stat[i], set_stat_random[i, ], p_null_side)
    }

    df = data.frame(gene_set = names(gene_sets),
                    stat = set_stat,
                    gs_size = sapply(l_set_list, sum),
                    p_value = p)
    df$p_adjust = p.adjust(p, "BH")
    df = df[order(df$p_value), ]
    rownames(df) = NULL

    return(df)
}

gsea_framework(expr, condition, gs) |> head()

##                gene_set       stat gs_size p_value p_adjust
## 1           ace2Pathway -1.1776645      11       0        0
## 2          hsp27Pathway -1.2530942      15       0        0
## 3            il4Pathway -1.1211118      11       0        0
## 4     p53hypoxiaPathway -1.0396952      20       0        0
## 5            p53Pathway -1.4462280      16       0        0
## 6 radiation_sensitivity -0.9476408      26       0        0

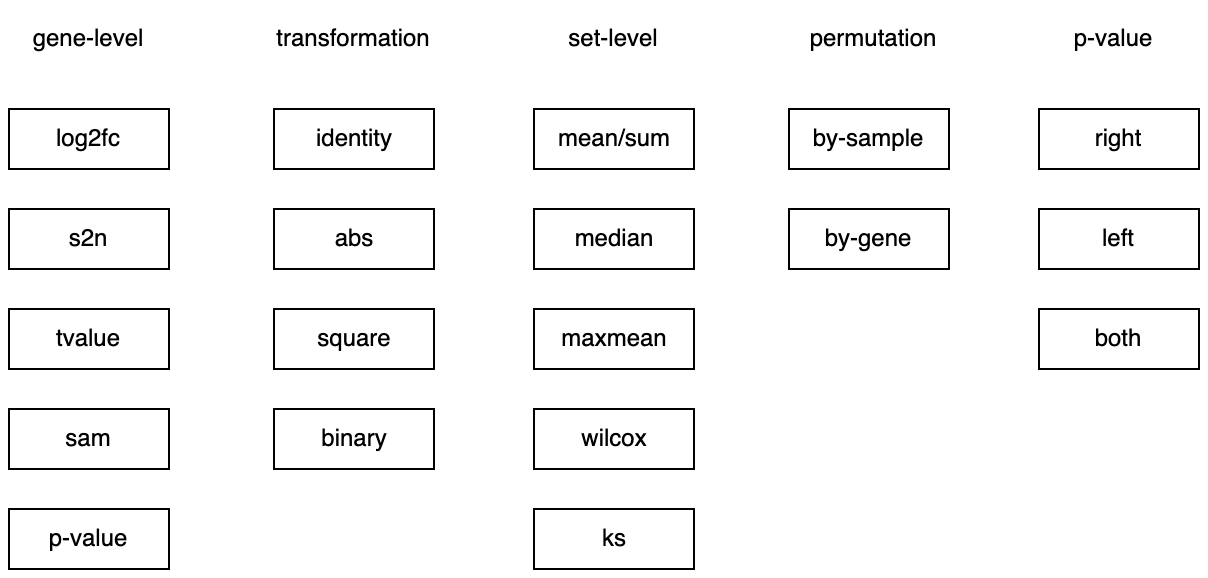

With different combinations of methods, the total number of methods is huge!

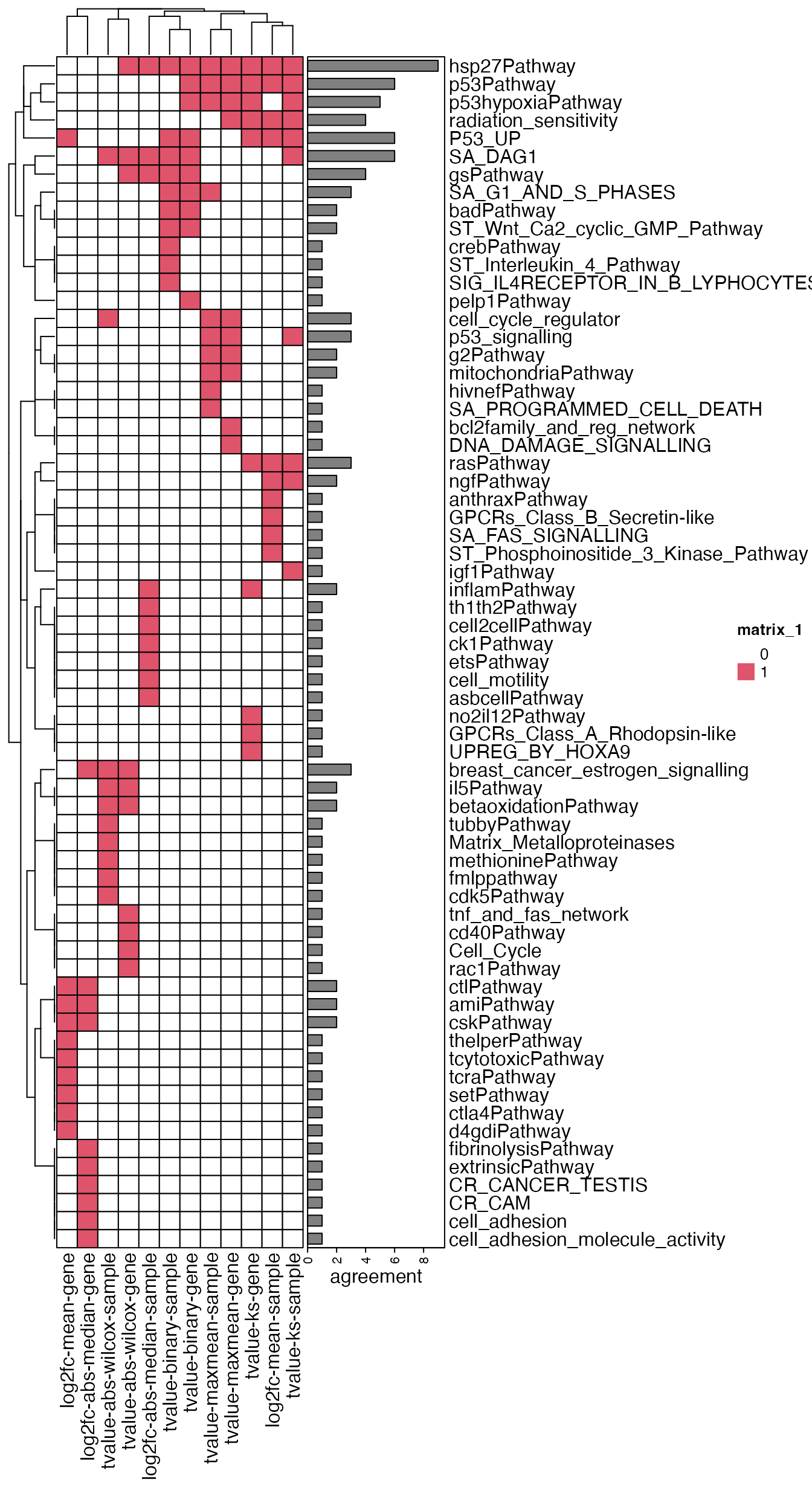

Comparison

Let’s do the comparisons on the following combinations:

gene-level	transformation	set-level	permutation	null side
log2fc	identity	mean	sample	both
log2fc	abs	median	sample	right
tvalue	identity	ks	sample	both
tvalue	identity	maxmean	sample	both
tvalue	abs	wilcox	sample	right
tvalue	binary	sum (mean)	sample	right
log2fc	identity	mean	gene	both
log2fc	abs	median	gene	right
tvalue	identity	ks	gene	both
tvalue	identity	maxmean	gene	both
tvalue	abs	wilcox	gene	right
tvalue	binary	sum (mean)	gene	right

tbl = list(
    "log2fc-mean-sample" = gsea_framework(expr, condition, gs,
        gene_level_method = "log2fc",
        transform = "identity",
        set_level_method = "mean",
        perm_type = "sample", p_null_side = "both"),
    "log2fc-abs-median-sample" = gsea_framework(expr, condition, gs,
        gene_level_method = "log2fc",
        transform = "abs",
        set_level_method = "median",
        perm_type = "sample", p_null_side = "right"),
    "tvalue-ks-sample" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "identity",
        set_level_method = "ks",
        perm_type = "sample", p_null_side = "both"),
    "tvalue-maxmean-sample" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "identity",
        set_level_method = "maxmean",
        perm_type = "sample", p_null_side = "both"),
    "tvalue-abs-wilcox-sample" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "abs",
        set_level_method = "wilcox",
        perm_type = "sample", p_null_side = "right"),
    "tvalue-binary-sample" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "binary", binarize = function(x) abs(x) > 2,
        set_level_method = "mean",
        perm_type = "sample", p_null_side = "right"),

    # the same combinations, but using gene permutations
    "log2fc-mean-gene" = gsea_framework(expr, condition, gs,
        gene_level_method = "log2fc",
        transform = "identity",
        set_level_method = "mean",
        perm_type = "gene", p_null_side = "both"),
    "log2fc-abs-median-gene" = gsea_framework(expr, condition, gs,
        gene_level_method = "log2fc",
        transform = "abs",
        set_level_method = "median",
        perm_type = "gene", p_null_side = "right"),
    "tvalue-ks-gene" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "identity",
        set_level_method = "ks",
        perm_type = "gene", p_null_side = "both"),
    "tvalue-maxmean-gene" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "identity",
        set_level_method = "maxmean",
        perm_type = "gene", p_null_side = "both"),
    "tvalue-abs-wilcox-gene" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "abs",
        set_level_method = "wilcox",
        perm_type = "gene", p_null_side = "right"),
    "tvalue-binary-gene" = gsea_framework(expr, condition, gs,
        gene_level_method = "tvalue",
        transform = "binary", binarize = function(x) abs(x) > 2,
        set_level_method = "mean",
        perm_type = "gene", p_null_side = "right")
)

For each analysis, we compare the top 10 most significant gene sets.

lt_sig = lapply(tbl, function(x) {
    x$gene_set[1:10]
})
all_sig_terms = unique(unlist(lt_sig))
cm = matrix(0, nrow = length(all_sig_terms), ncol = length(tbl))
rownames(cm) = all_sig_terms
colnames(cm) = names(tbl)
for(i in seq_along(lt_sig)) {
    cm[lt_sig[[i]], i] = 1
}

library(ComplexHeatmap)
Heatmap(cm, col = c("0" = "white", "1" = 2), rect_gp = gpar(col = "black"),
    right_annotation = rowAnnotation(agreement = anno_barplot(rowSums(cm), width = unit(3, "cm"))))
